Five row Tandem Thrust Cylindrical Roller Bearings
Product
Five row Tandem Thrust Cylindrical Roller Bearings
Five row Tandem Thrust Cylindrical Roller Bearings
Five row Tandem Thrust Cylindrical Roller Bearings

Five row Tandem Thrust Cylindrical Roller Bearings

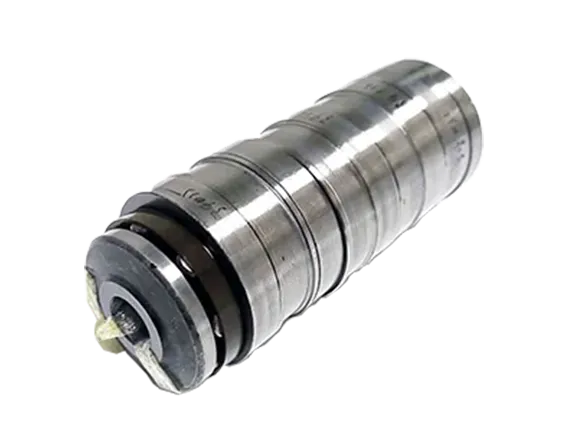

Five row Tandem Thrust Cylindrical Roller Bearings consists of five single-stage thrust cylindrical roller bearings, an outer spacer, an inner spacer and a shaft. It has a simple and compact structure, saves installation space, is easy to install and debug, has uniform load, is wear-resistant, has low vibration, low noise, long life and large axial load capacity. The five-row tandem thrust cylindrical roller bearing can be designed with a shaft structure according to customer needs. Compared with the four-row tandem thrust cylindrical roller bearing, the five-row tandem thrust cylindrical roller bearing of the same size has a higher load and meets higher production efficiency.

Details

Old_spec Designations Row Principal dimensions mm Basic load ratings Weight/kg Brand
d D H dyc_Cr stc_Cor
T5AR420 M5CT420 5 4 20 54 31 73 0.086 LYKBL
T5AR420A M5CT420A 5 4 20 54 31 73 0.093 LYKBL
T5AR527 M5CT527 5 5 27 65 51 131 0.21 LYKBL
T5AR1037EA M5CT1037EA 5 10 37 99 105 344 0.57 LYKBL
T5AR1037E M5CT1037E 5 10 37 99 105 344 0.487 LYKBL
T5AR1242 M5CT1242 5 12 42 104.6 128 445 0.776 LYKBL
T5AR1242A M5CT1242A 5 12 42 104.6 128 445 0.925 LYKBL
T5AR1242EA M5CT1242EA 5 12 42 104.6 129 445 0.9 LYKBL
T5AR1242E M5CT1242E 5 12 42 104.6 129 445 0.75 LYKBL
T5AR1858 M5CT1858 5 18 58 126.5 222 910 1.787 LYKBL
T5AR1858X2 M5CT1858X2 5 18 58 107.5 311 1120 1.61 LYKBL
T5AR2047 M5CT2047 5 20 47 99 177 566 0.834 LYKBL
T5AR2262 M5CT2262 5 22 62 110 311 1120 1.78 LYKBL
T5AR2262A M5CT2262A 5 22 62 110 311 1120 2.2 LYKBL
T5AR2262A1 M5CT2262A1 5 22 62 110 311 1120 2.2 LYKBL
T5AR2264 M5CT2264 5 22 64 128.5 239 954 2.065 LYKBL
T5AR2264A M5CT2264A 5 22 64 128.5 239 954 2.55 LYKBL
T5AR2264E M5CT2264E 5 22 64 128.5 242 1150 1.94 LYKBL
T5AR2264EA M5CT2264EA 5 22 64 128.5 242 1150 2.425 LYKBL
T5AR2385 M5CT2385 5 23 85 162 624 2651 5.143 LYKBL
T5AR2362 M5CT2362 5 23 62 131 270 896 2.054 LYKBL
T5AR2468A M5CT2468A 5 24 68 119 336 1415 2.92 LYKBL
T5AR2468 M5CT2468 5 24 68 119 336 1415 2.32 LYKBL
T5AR2577 M5CT2577 5 25 77 134 403 1753 3.48 LYKBL
T5AR2876 M5CT2876 5 28 76 135 392 1664 3.199 LYKBL
T5AR2876A M5CT2876A 5 28 76 135 443 1398 4.73 LYKBL
T5AR3073 M5CT3073 5 30 73 153 260 1188 3.103 LYKBL
T5AR3073A M5CT3073A 5 30 73 153 260 1188 4.1 LYKBL
T5AR3073E M5CT3073E 5 30 73 153 289 1286 2.88 LYKBL
T5AR3073EA M5CT3073EA 5 30 73 153 289 1286 3.877 LYKBL
T5AR3278 M5CT3278 5 32 78 137 442 1397 3.22 LYKBL
T5AR3278A M5CT3278A 5 32 78 137 391 1664 4.22 LYKBL
T5AR3495 M5CT3495 5 34 95 163 583 2495 6.43 LYKBL
T5AR36120KK M5CT36120KK 5 36 120 260 1042 4375 14.15 LYKBL
T5AR36120 M5CT36120 5 36 120 197 1042 4375 11.19 LYKBL

The product sizes not listed in the table can be customized. Please contact us for product consultation.

Our company can provide two-row, three-row, four-row, five-row, six-row, seven-row, eight-row, shaft-type and sleeve-type tandem thrust cylindrical roller bearings, as well as customized designs according to customer size requirements. Customers can also choose the required bearing model according to the screw center distance, space size and load size.
