RE Type Crossed Roller Bearings
RE type fork roller bearing is a fork roller bearing with split inner ring and integrated outer ring. It is a bearing with outer ring rotating structure. The main dimensions of RE type cross roller bearing are the same as those of RB type cross roller bearing. It is most suitable for parts requiring outer ring rotation accuracy. RE type fork roller bearing has high rigidity and high running accuracy of guide roller by optimizing preload. It is suitable for parts requiring high outer ring rotation accuracy. The thin-walled size miniaturization design is conducive to the lightweight design of related structures. The overall structure of the outer ring is more suitable for occasions with high outer ring rotation accuracy, and the stable rotation accuracy reaches μm level.
|
Model |
Dimension |
Basic load rating (radial) |
Weight |
|||||
|
Inner diameter |
Outer diameter |
Pitch circle |
Width |
C |
C0 |
kg |
||
|
RE2008 |
20 |
36 |
29 |
8 |
3.23 |
3.1 |
0.04 |
|
|
RE2508 |
25 |
41 |
34 |
8 |
3.63 |
3.83 |
0.05 |
|
|
RE3010 |
30 |
55 |
43.5 |
10 |
7.35 |
8.36 |
0.12 |
|
|
RE3510 |
35 |
60 |
48.5 |
10 |
7.64 |
9.12 |
0.13 |
|
|
RE4010 |
40 |
65 |
53.5 |
10 |
8.33 |
10.6 |
0.16 |
|
|
RE4510 |
45 |
70 |
58.5 |
10 |
8.62 |
11.3 |
0.17 |
|
|
RE5013 |
50 |
80 |
66 |
13 |
16.7 |
20.9 |
0.27 |
|
|
RE6013 |
60 |
90 |
76 |
13 |
18 |
24.3 |
0.3 |
|
|
RE7013 |
70 |
100 |
86 |
13 |
19.4 |
27.7 |
0.35 |
|
|
RE8016 |
80 |
120 |
101.4 |
16 |
30.1 |
42.1 |
0.7 |
|
|
RE9016 |
90 |
130 |
112 |
16 |
31.4 |
45.3 |
0.75 |
|
|
RE10016 |
100 |
140 |
121.1 |
16 |
31.7 |
48.6 |
0.83 |
|
|
RE10020 |
100 |
150 |
127 |
20 |
33.1 |
50.9 |
1.45 |
|
|
RE11012 |
110 |
135 |
123.3 |
12 |
12.5 |
24.1 |
0.4 |
|
|
RE11015 |
110 |
145 |
129 |
15 |
23.7 |
41.5 |
0.75 |
|
|
RE11020 |
110 |
160 |
137 |
20 |
34 |
54 |
1.56 |
|
|
RE12016 |
120 |
150 |
136 |
16 |
24.2 |
43.2 |
0.72 |
|
|
RE12025 |
120 |
180 |
152 |
25 |
66.9 |
100 |
2.62 |
|
|
RE13015 |
130 |
160 |
146 |
15 |
25 |
46.7 |
0.72 |
|
|
RE13025 |
130 |
190 |
162 |
25 |
69.5 |
107 |
2.82 |
|
|
RE14016 |
140 |
175 |
160 |
16 |
25.9 |
50.1 |
1 |
|
|
RE14025 |
140 |
200 |
172 |
25 |
74.8 |
121 |
2.96 |
|
|
RE15013 |
150 |
180 |
166 |
13 |
27 |
53.5 |
0.68 |
|
|
RE15025 |
150 |
210 |
182 |
25 |
76.8 |
128 |
3.16 |
|
|
RE15030 |
150 |
230 |
192 |
30 |
100 |
156 |
5.3 |
|
|
RE16025 |
160 |
220 |
192 |
25 |
81.7 |
135 |
3.14 |
|
|
RE17020 |
170 |
220 |
196.1 |
20 |
29 |
62.1 |
2.21 |
|
|
RE18025 |
180 |
240 |
210 |
25 |
84 |
143 |
3.44 |
|
|
RE19025 |
190 |
240 |
219 |
25 |
41.7 |
82.9 |
2.99 |
|
|
RE20025 |
200 |
260 |
230 |
25 |
84.2 |
157 |
4 |
|
|
RE20030 |
200 |
280 |
240 |
30 |
114 |
200 |
6.7 |
|
|
RE20035 |
200 |
295 |
247.7 |
35 |
151 |
252 |
9.6 |
|
|
RE22025 |
220 |
280 |
250.1 |
25 |
92.3 |
171 |
4.1 |
|
|
RE24025 |
240 |
300 |
272.5 |
25 |
68.3 |
145 |
4.5 |
|
|
RE25025 |
250 |
310 |
280.9 |
25 |
69.3 |
150 |
5 |
|
|
RE25030 |
250 |
330 |
287.5 |
30 |
126 |
244 |
8.1 |
|
|
RE25040 |
250 |
355 |
300.7 |
40 |
195 |
348 |
14.8 |
|
|
RE30025 |
300 |
360 |
332 |
25 |
75.5 |
178 |
5.9 |
|
|
RE30035 |
300 |
395 |
345 |
35 |
183 |
367 |
13.4 |
|
|
RE30040 |
300 |
405 |
351.6 |
40 |
212 |
409 |
17.2 |
|
|
RE35020 |
350 |
400 |
376.6 |
20 |
54.1 |
143 |
3.9 |
|
|
RE40035 |
400 |
480 |
440.3 |
35 |
156 |
370 |
14.5 |
|
|
RE40040 |
400 |
510 |
453.4 |
40 |
241 |
531 |
23.5 |
|
|
RE45025 |
450 |
500 |
476.6 |
25 |
61.7 |
182 |
6.6 |
|
|
RE50025 |
500 |
550 |
526.6 |
25 |
65.5 |
201 |
7.3 |
|
|
RE50040 |
500 |
600 |
548.8 |
40 |
239 |
607 |
26 |
|
|
RE50050 |
500 |
625 |
561.6 |
50 |
267 |
653 |
41.7 |
|
|
RE60040 |
600 |
700 |
650 |
40 |
264 |
721 |
29 |
|
RA Type Crossed Roller Bearings
Read More +
RAU Ultra-thin Crossed Roller Bearings
Read More +
RB Type Crossed Roller Bearings
Read More +
RU Crossed Roller Bearings
Read More +
CRBH High Rigidity Crossed Cylindrical Roller Bearings
Read More +

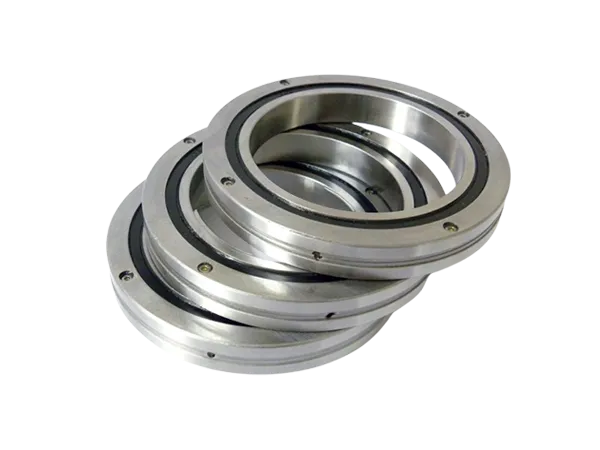

CRBC Standard Crossed Roller Bearings
Read More +

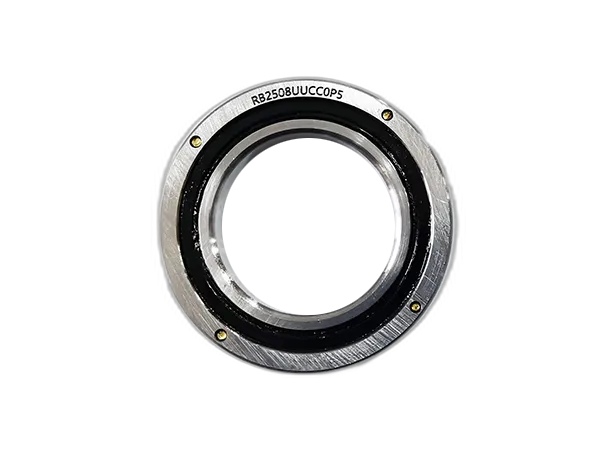

CRBS Thin Wall Crossed Roller Bearings
Read More +

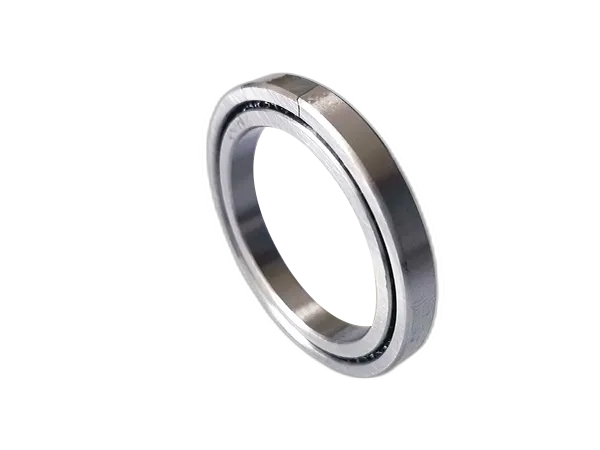

CRBT Ultra-thin Wall Crossed Roller Bearings
Read More +

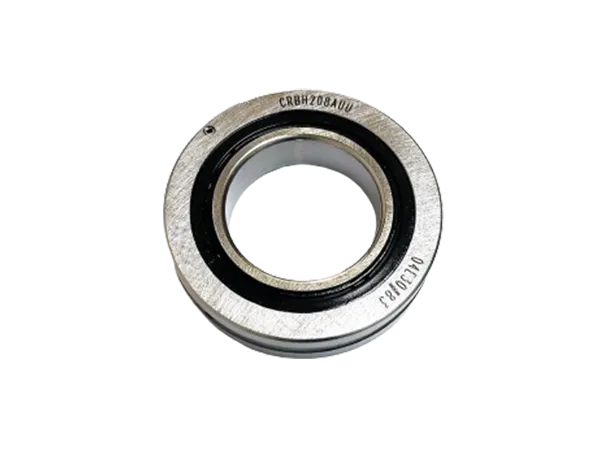

CRBF High Rigidity Crossed Roller Bearings with Mounting Holes
